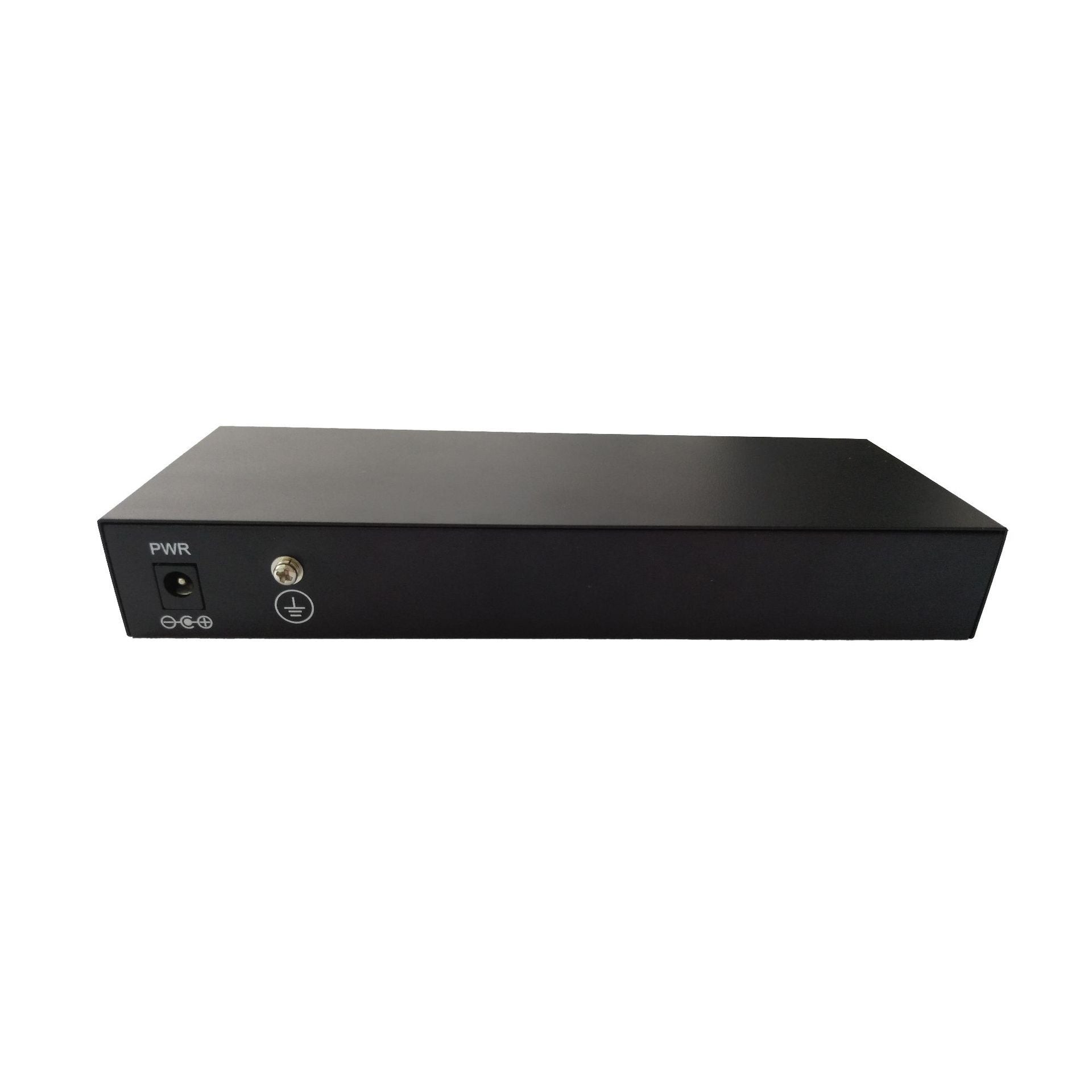

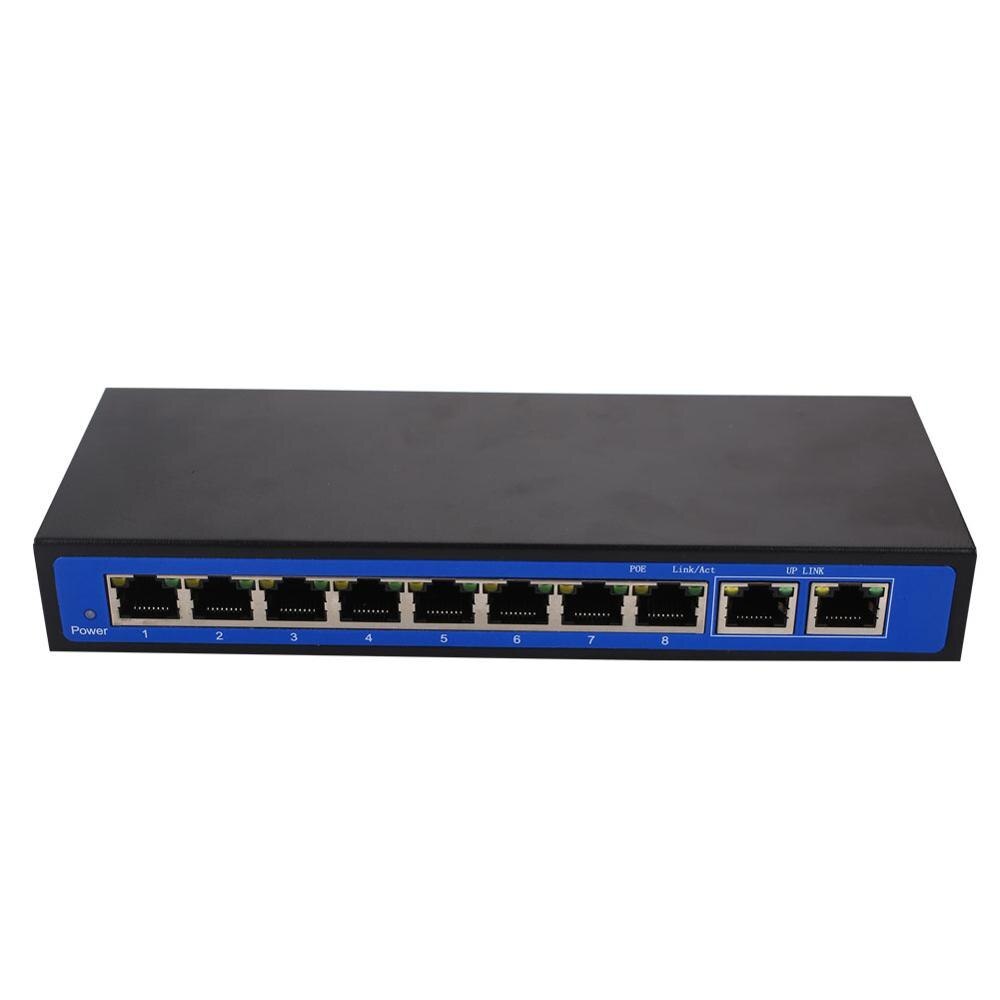

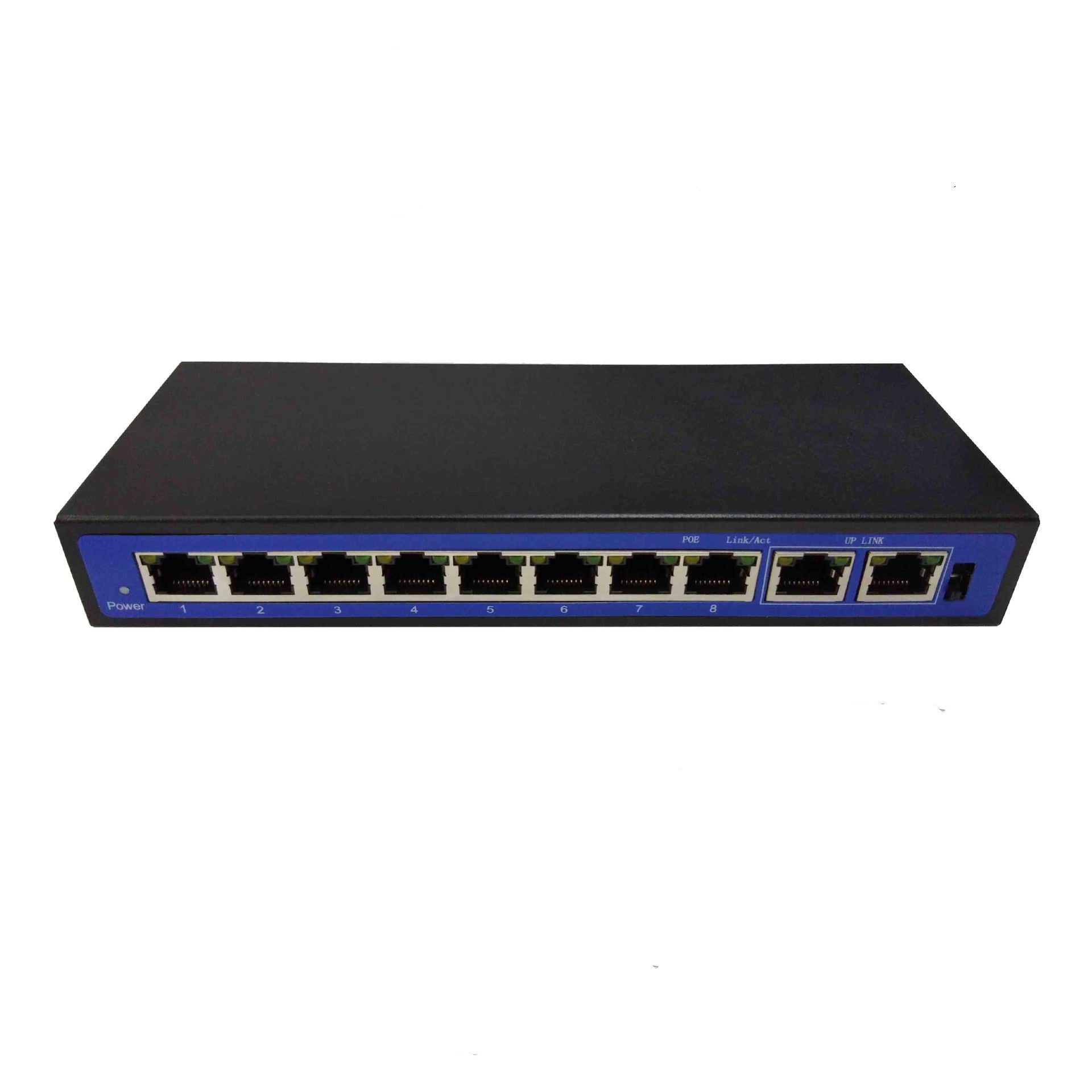

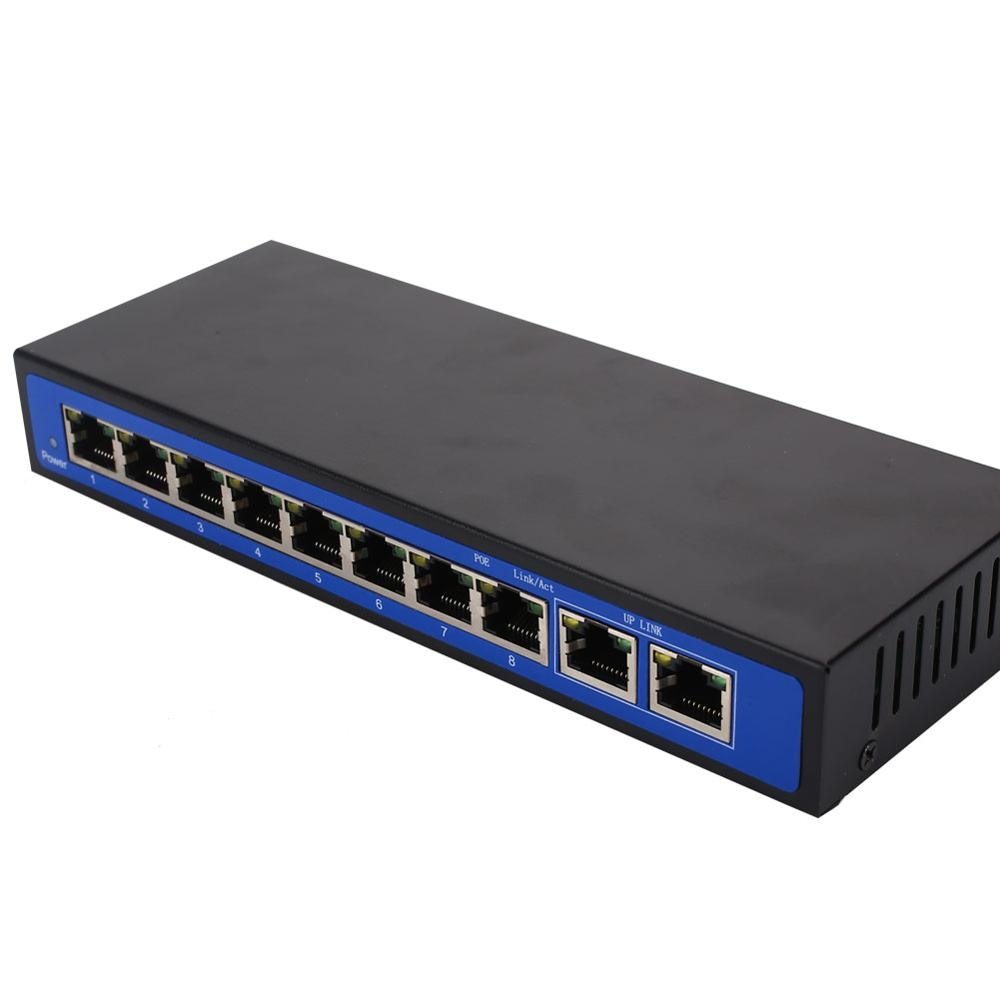

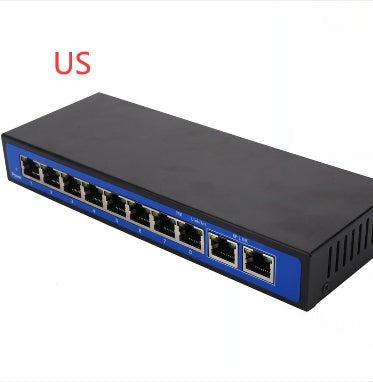

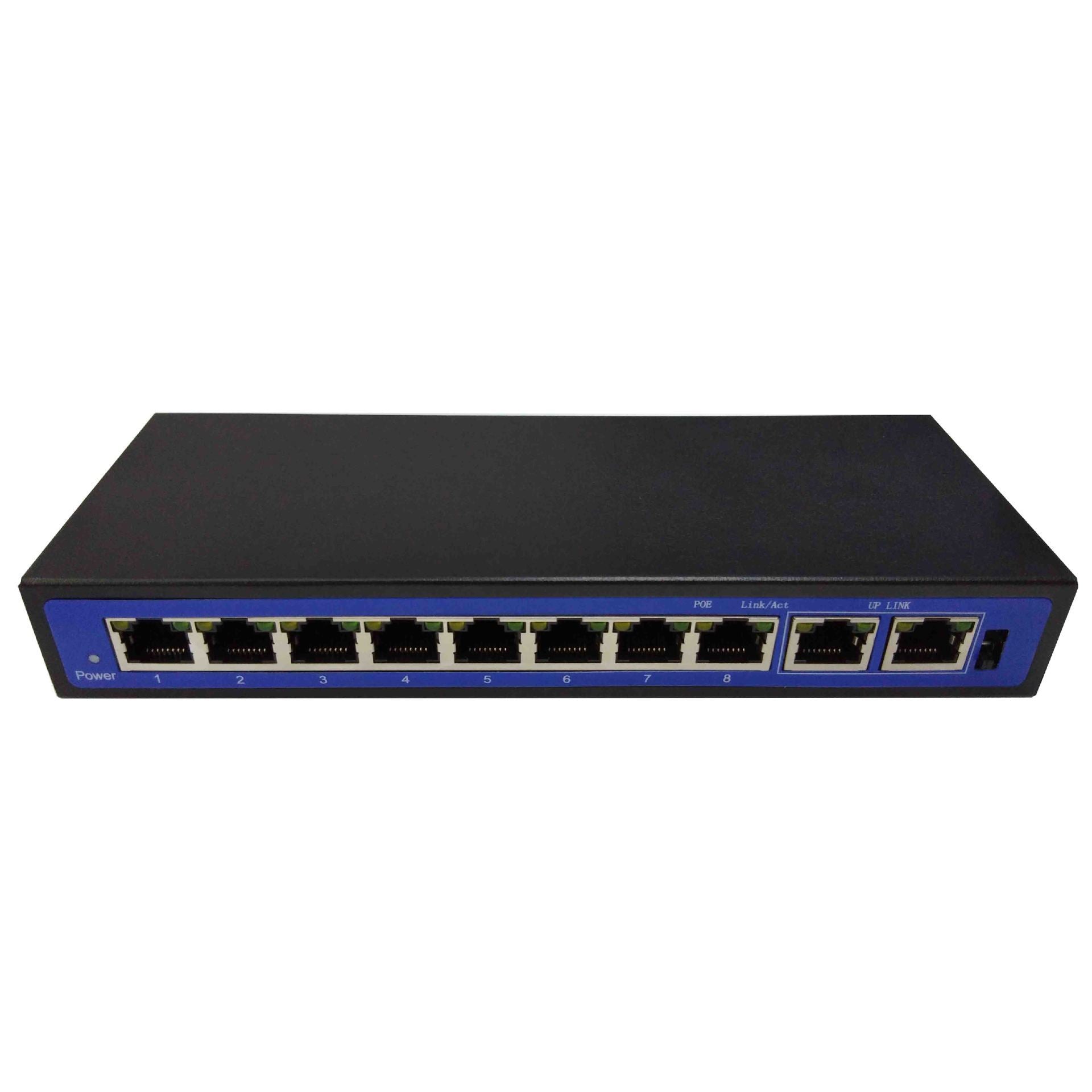

8+2 power 10 port 100M POE switch wireless AP 48V external power supply

Description

Product name: 8+2 electric POE power supply switch
Product model: ZWD-8+2BZDW
POE switch port: 1-8 ports support IEEE 802.3af (15.4W) network power supply
SEP port not supported
POE switch port output power: 15.4W/30W IEEE802.3af/at
POE switch transmission wire core: 1/2+, 3/6-pair (optional 4/5+, 7/8-pair)
Port description: 8 Ethernet ports; 2 uplink Ethernet ports
POE switch connection standard: IEEE802.3af/IEEE802.3at
PoE switch power transmission distance: ≤200 meters
POE switch type: terminal jumper method
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Network medium: Category 5 and above unshielded twisted pair
Network signal distance: transmission ≤120 meters
Backplane bandwidth: 2.0Gbps
Forwarding method: store and forward
Forwarding rate: 10Base-T: 14880PPS/port 100Base-TX: 148800PPS/port
MAC address: 2KMAC
Port function: power supply priority mechanism, fast and forwarding, MAC automatic learning and aging
IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Indicator light: Each port has 1 Link/Act and POE switch indicator
Each device has 1 Power indicator
Working temperature: 0℃～40℃
Storage temperature: —40℃～70℃
Working humidity: 10%～90%RH (no condensation)
Storage humidity: 5%～90%RH (no condensation)
Power supply: external power adapter (input AC220V, output 48V 3A)
Whole machine power consumption: ≤ 150W

8+2 power 10 port 100M POE switch wireless AP 48V external power supply

Product form

$43.71 Incl. VAT

  • Shipped today? Order within: Aug 28, 2025 17:00:00 +0530

SKU: CJJSWLMO00004-EU

    Description

    Product name: 8+2 electric POE power supply switch
    Product model: ZWD-8+2BZDW
    POE switch port: 1-8 ports support IEEE 802.3af (15.4W) network power supply
    SEP port not supported
    POE switch port output power: 15.4W/30W IEEE802.3af/at
    POE switch transmission wire core: 1/2+, 3/6-pair (optional 4/5+, 7/8-pair)
    Port description: 8 Ethernet ports; 2 uplink Ethernet ports
    POE switch connection standard: IEEE802.3af/IEEE802.3at
    PoE switch power transmission distance: ≤200 meters
    POE switch type: terminal jumper method
    Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
    Network medium: Category 5 and above unshielded twisted pair
    Network signal distance: transmission ≤120 meters
    Backplane bandwidth: 2.0Gbps
    Forwarding method: store and forward
    Forwarding rate: 10Base-T: 14880PPS/port 100Base-TX: 148800PPS/port
    MAC address: 2KMAC
    Port function: power supply priority mechanism, fast and forwarding, MAC automatic learning and aging
    IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
    Indicator light: Each port has 1 Link/Act and POE switch indicator
    Each device has 1 Power indicator
    Working temperature: 0℃～40℃
    Storage temperature: —40℃～70℃
    Working humidity: 10%～90%RH (no condensation)
    Storage humidity: 5%～90%RH (no condensation)
    Power supply: external power adapter (input AC220V, output 48V 3A)
    Whole machine power consumption: ≤ 150W
