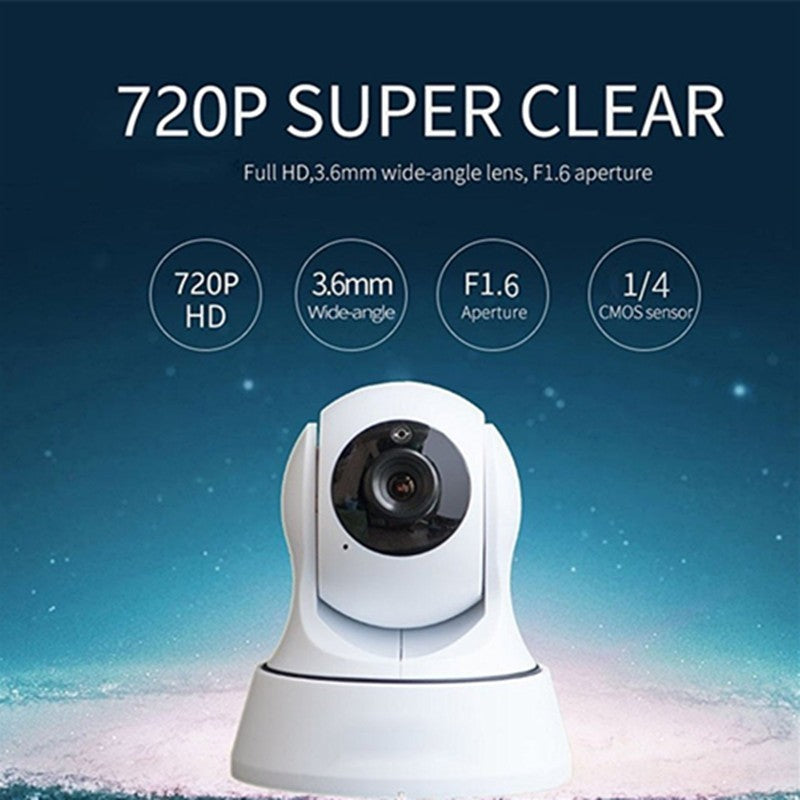

Description
Chip data chip jun zheng T10
Single-core CPU 1.2 GHz
Memory Embedded in 16bitt @400Mhz DDRII; 512 m
Image sensor sensor type H42 1/4 "CMOS sensor
Number of pixels 1280 x 720 (1 million pixels)
Minimum illumination 0.01

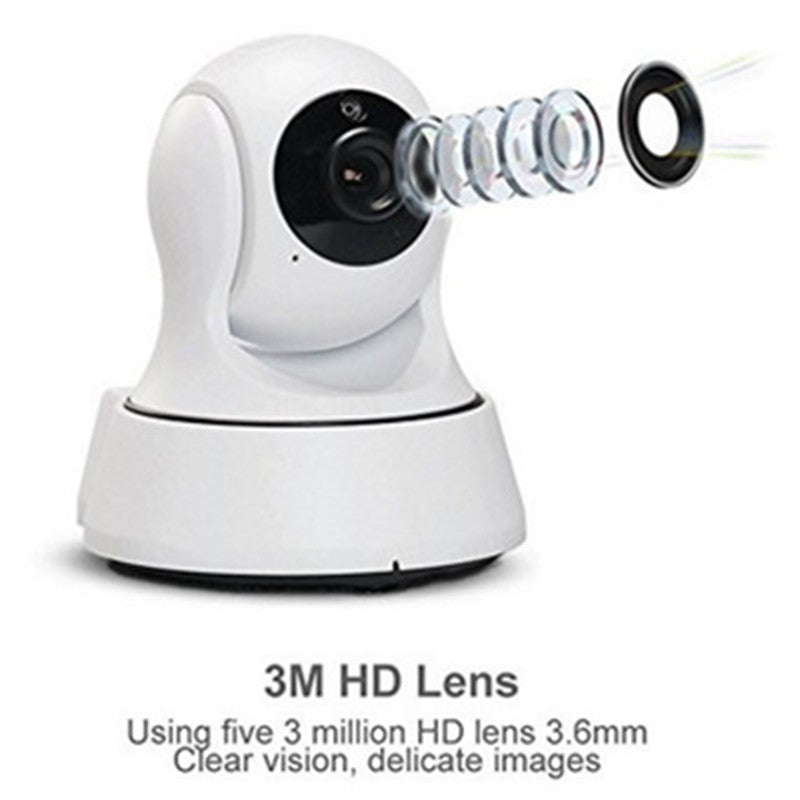

Fixed focal length of lens parameters: 3.6mm
Viewing Angle 60 °
Day and night function ir-cut dual filters automatically switch
Night vision is 10 meters
Connect network protocol HTTP,FTP,TCP/IP,UDP,SMTP
, DHCP, PPPoE DDNS, UPnP, RTSP
Cable network does not support, no network
WIFI (IEEE 802.11b/g/n)
Wireless connection smart connection
Onvif supports the standard onvif protocol, RTSP stream
P2P connection support
Feature video compressed format h.264, MJPEG
Resolution 720P, 640 x 480(VGA)
Video frame rate 25fps
Code stream
Mobile detection support
E-mail/FTP upload photo support
Watch support

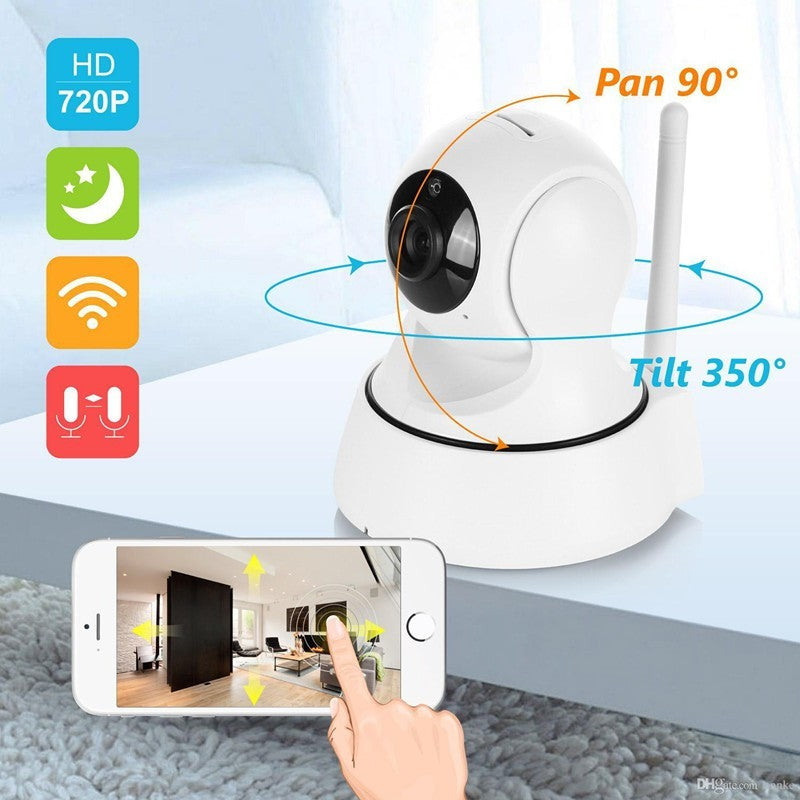

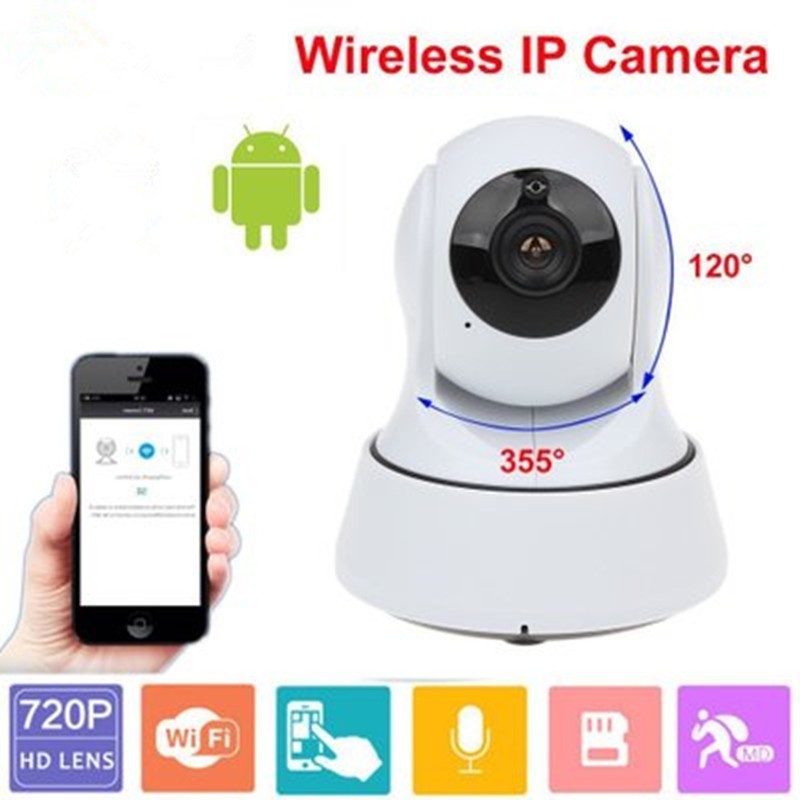

Yuntai around 355 °, 120 °
SD card video maximum 64GB
CJJSWLWX00001-White
SD card video
:16G
The maximum number of presets is 8
Sound alarm support
Storage support TF card storage, Max support 64G; Supports PC and NVR storage
Voice built-in microphone support
Speech compression format adpcm
Built-in speaker support
Physical characteristics power supply specification DC5V/ 1.0a
Product specification 107*125*127mm
Package size 200x179x123mm
Working humidity of 20% ~ 85% (non-coagulation)
Working temperature - 10 ° ~ 60 ° C C
